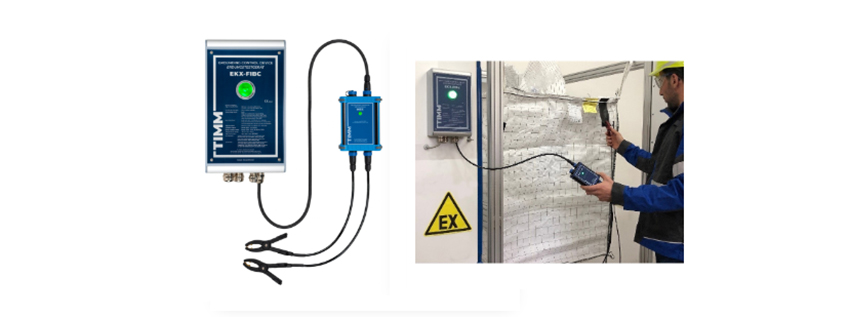

Grounding Control Device EKX-FIBC

DESCRIPTION
  • For all FIBC type C according to IEC 61340-4-4 (10 MΩ und 100 MΩ)
  • Monitored dissipation pf the occurring static charges during filling and emptying operations +
  • Tamper-proof due to digital measuring technology and reliable object detection (5-check-principle)
  • Relais and NAMUR control outputs
  • For use in dust- and gas hazardous areas of zone 1, zone 2, zone 21 and zone 22
  • Autodiagnostic system for permanent self-monitoring of all safety-related functions
  • Easy handling thanks to cable quick couplings and the integrated plain text OLED-display
  • Mounting the main unit at a distance of up to 20m from the workplace possible

BENEFITS OF EKX-FIBC

  • For all FIBC type C according to IEC 61340-4-4 (107 Ω and 108 Ω)
  • Tamper-proof through digital measurement technology and automatic object recognition
  • Simultaneous monitoring of two big bags
  • Relay and NAMUR control outputs
  • Autodiagnosis system for permanent self-monitoring of all safety-related functions
  • Easy handling thanks to cable quick couplings and the integrated plain text display
  • Mounting the main unit at a distance of up to 20m from the workplace possible
